Article 4.RS05.R

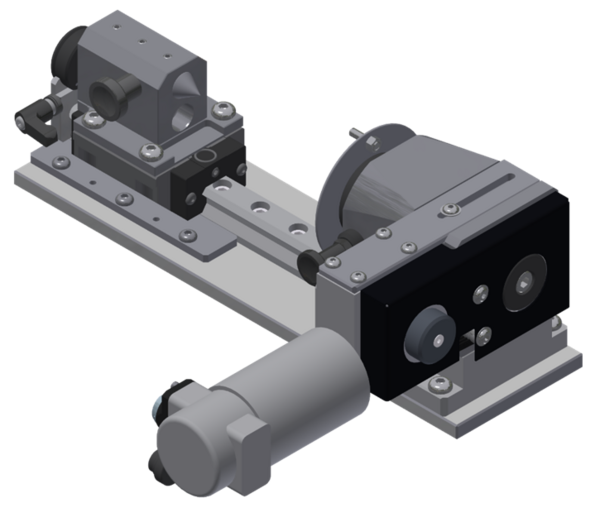

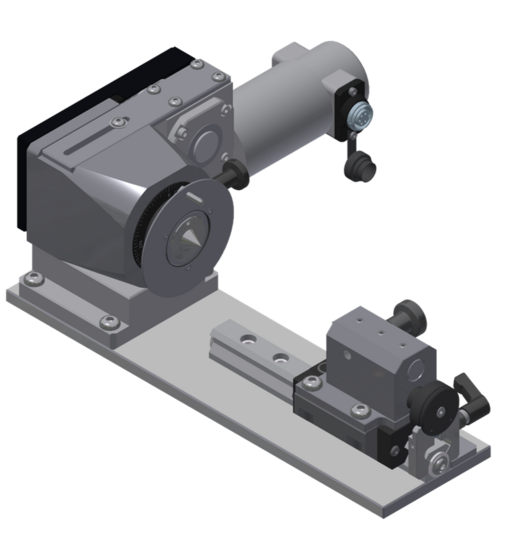

RAPID precision grinding unit

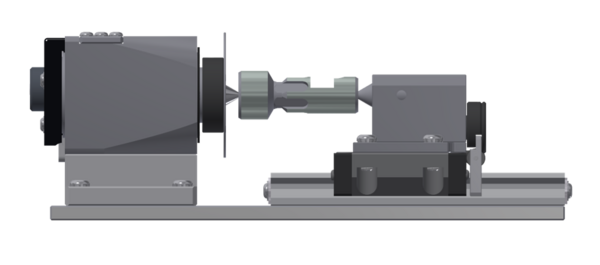

For cantilevered grinding and between centres on surface grinding machines
- Ideal for single and small series parts
- Rational and pleasantly easy to use
- Principle proven since 1980
- Attractive low price
- Optional accessories:

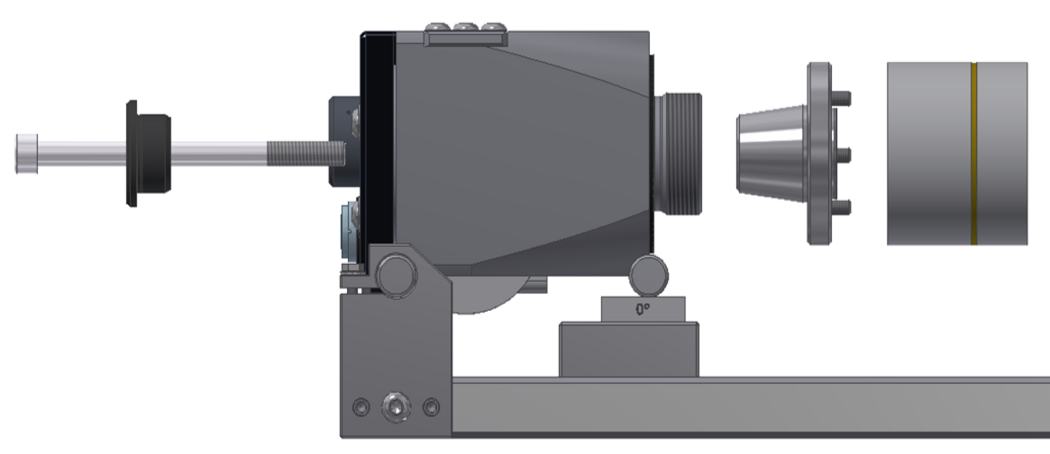

ER32 collets
ER11 adapter;

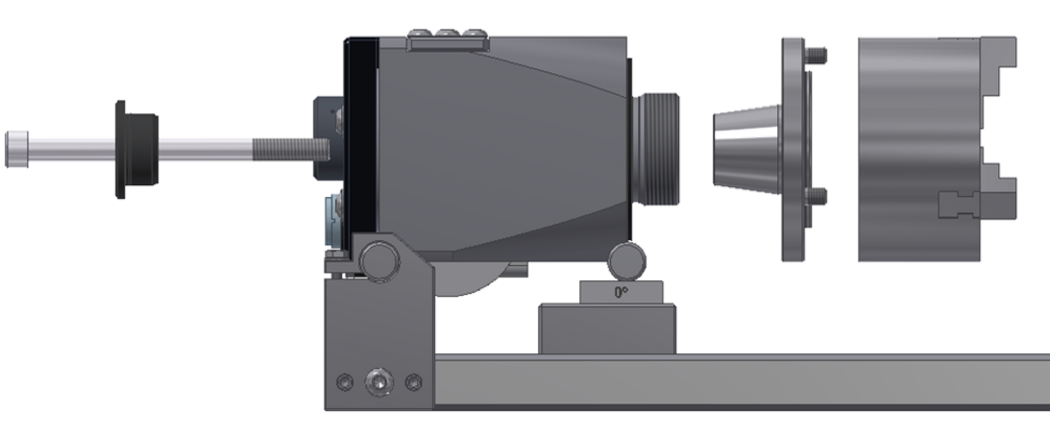

3-jaw chuck
Magnetic chuck
Driving disc
Catalog-# / Description
Technical details
| Technical data | |
|---|---|
| Supporting surface approx. | 350x100mm |
| Weight approx. | 13kg |
| Height approx. | 128mm |
| Index dividing apparatus | 15° (+/- 1') |
| Centre height approx. | 45mm |
| Tool holder | ER32 (for collets Ø 2-20mm) |
| Spindle rotation | 0,002mm |
| Drive system | Electric motor, infinitely variable, 0-300 rpm, clockwise / anti-clockwise rotation switchable |
| Power supply | 115-230V / 50-60Hz / 70W |

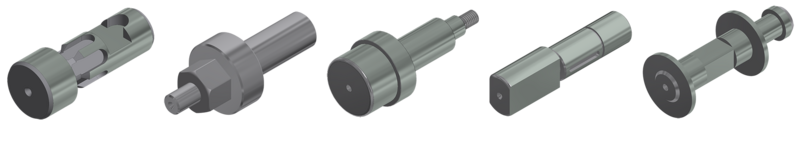

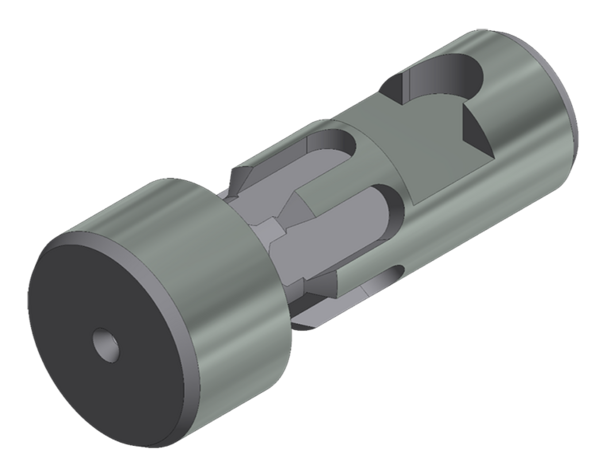

Application examples
Often a round ground single part is acutely needed...!
You solve this task with extended possibilities of your surface grinding machine
Documents
| Accessory | Description | Article | |
|---|---|---|---|
 | Control unit, for RAPID grinding unit | 4.SG01 | to product |
 | 3-jaw chuck for RAPID grinding unit | 4.0.BF080 | to product |
 | Magnetic clamping chuck for RAPID grinding unit | 4.0.MF.xxx | to product |
 | Collet holders for RAPID grinding unit | 4.0.xxx | to product |
 | Driving tip for RAPID grinding unit | 4.MNS01.80 | to product |
