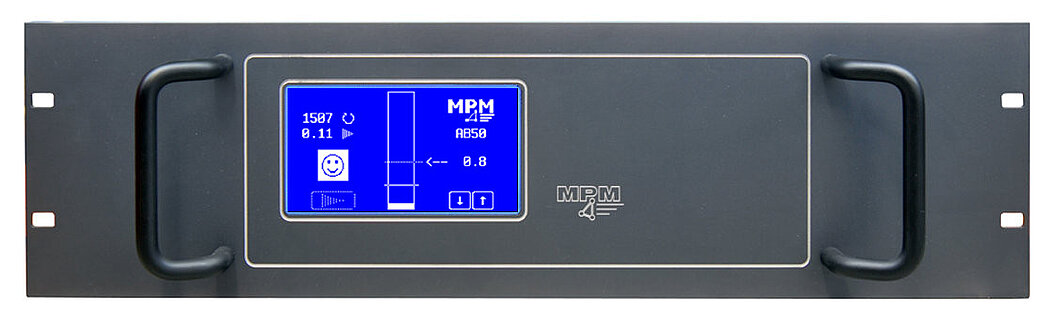

Article 3.AB50P01.1.C.EXT.24 and 3.AB50P01.1.C.EXT.230
For fully automatic balancing on grinding machines with MPM-mounted or spindle-mounted balancing units with CONLESS control and 19" front panel
- CONLESS control
- Balcon50 software for balancing without AE acoustic emission
- Operation via touch screen
- Compatible with all MPM CONLESS balancers
- CAN-Bus data output
- Housing 19"
- Short delivery time
Catalog-# / Description
Technical details
| Technical data | ||
|---|---|---|
| Operating voltage | 24 V= / 230V~ | |
| Power consumption approx. | 73 VA | |
| CONLESS transmitter connection | 7-pin | |
| Vibration sensor connection | 4-pole | |
| External output | 5-pole, D-SUB socket 9-pole | |
| Operation | Touchscreen | |
| Display accuracy | ±1 digit | |

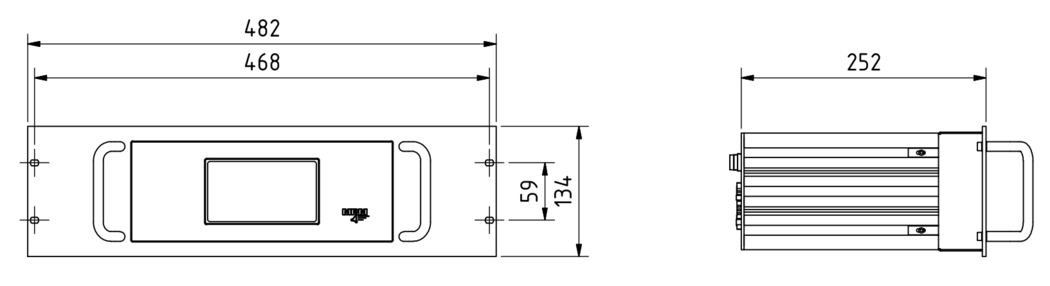

| Dimensions W x H x D [mm] | 482 x 134 x 252 | |
| Weight approx. | 4 kg | |
| Ambient temperature during operation | 0 °C to +50 °C | |
| Ambient temperature during storage | -10 °C to +60 °C | |
| Humidity | 20 % to 50 % relative humidity |
| Accessory | Description | Article | |
|---|---|---|---|
 | Vibration sensor | 3.PU | to product |
 |
Cable (extension), 4-pin for vibration sensors Socket / Connector | 3.4xxBS | to product |
 |
CONLESS transmitter, 7-pin without AE acoustic emission | 3.SxxC | to product |
 |
Cable (extension), 7-pin for CONLESS transmitters Socket / Connector | 3.7xxBS | to product |
 |
CONLESS receiver, 3-pole without AE acoustic emission | 3.Exx | to product |
 |
Spiral cable, 3-pole Connection between electronics and ISB type A and B For ISB apparatus without AE acoustic emission signal | 3.3.Sxx.SS | to product |
 |
Built-in balancer without AE acoustic emission signal | 3.ISB | to product |
 |
Built-in balancers without AE acoustic emission signal for use in HSK receptacles. From HSK63 to HSK125 | 3.ISBxxxC | to product |
 |
Add-on balancers without AE acoustic emission signal | 3.ESB | to product |
