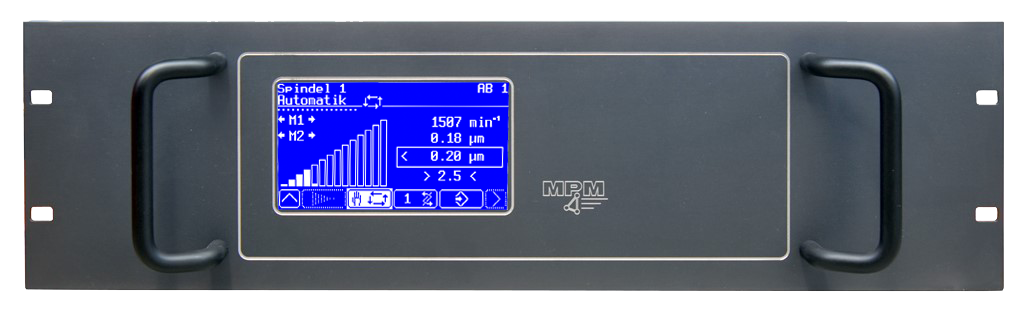

Article 3.AB300P01.1.K
Catalog-# / Description
Technical details
| Technical data | |
|---|---|
| Operating voltage | 24 V= |
| Power input approx. | 73 VA |
| Collector connection | 5-polig |
| Vibration sensor connection | 4-polig |
| External output | 5-pole stereo, D-SUB 9-pole socket |
| Operation | Touchscreen |
| Dimensions W x H x D [mm] | 482 x 134 x 252 |
| Weight approx. | 4 kg |
| Ambient operating temperature | 0 °C bis +50 °C |
| Ambient storage temperature | -10 °C bis +60 °C |
| Air humidity | 20 % to 50 % rel. humidity |
| Accessory | Description | Article | |
|---|---|---|---|
 | Vibration sensor | 3.PU | to product |
 |
Cable (extension), 4-pin for vibration sensors Socket / Connector | 3.4xxBS | to product |
 |
Balancer attachment with collector Socket, 5-pin | 3.ESB.xxxA.xxx | to product |
 |
Connection cable, 5-pin Electronics for Collector Balancing Apparatus Connector / Connector | 3.5xxSS | to product |
|
Cable (extension), 5-pin Socket / Connector | 3.5xxBS | to product |
