Article 3.BMT340SM3
Catalog-# / Description
Technical details
| Technical data | ||
|---|---|---|
| Operating voltage | DC 24 V= | |
| Power consumption approx. | Pmax 40VA | |
| Software update | Via RS232 interface | |
| Speed sensor connection | 7-pole | |
| Vibration sensor connection | 4-pole, 5Vpp, max. +/- 10V= | |
| Structure-borne sound sensor connection (optional) | 5-pole | |
| External output | D-SUB socket 9-pin | |
| Operation | 3.BM340 or machine control | |
| Speed measuring range | 60-120.000min-1 | |
| Standard housing | SM3, aluminium | |

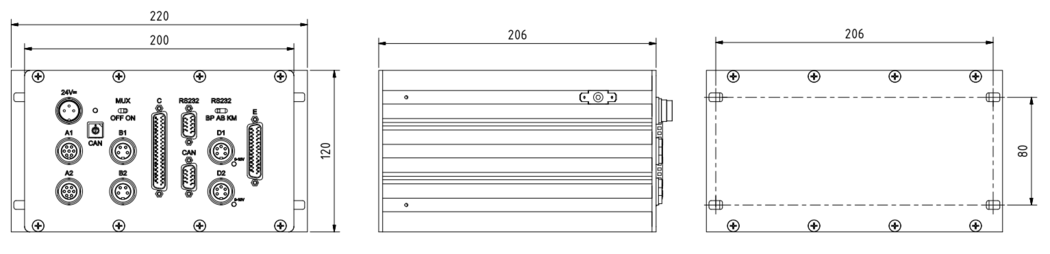

| Dimensions W x H x D [mm] | 220x120x206 | |
| Weight approx. | 3 kg | |
| Ambient temperature during operation | 0 °C to +50 °C | |
| Ambient temperature during storage | -10 °C to +70 °C | |
| Humidity | 20 % to 50 % relative humidity |
| Accessory | Description | Article | |
|---|---|---|---|
 | Operating modules | 3.BM340 | to product |
 | CAN-USB adapter | 3.CAN.USB.350 | to product |
 | Data cable | 3.DKC.B09xx | to product |
 | Vibration sensor | 3.PU | to product |
 |
Cable (extension), 4-pin for vibration sensors Socket / Plug | 3.4xxBS | to product |
 | Speed sensors | 3.DS | to product |
 |
Cable (extension), 7-pin for speed sensor Socket / Plug | 3.7xxBS | to product |
 |
Magnetic inserts for speed measurement. In conjunction with magnetic speed sensor 3.DS.03.3 | 3.0.M.430602 | to product |
 | Balancing rings | 3.WR | to product |
 | Scale rings | 3.S360 | to product |
 | AE structure-borne sound sensors | 3.ASK / 3.ASM | to product |
|
Cable (extension), 7/5-pin for AE structure-borne sound sensors Socket / Plug | 3.7/5xxBS | to product |
 | Precision pocket scales | 3.CM | to product |
 | Grub screw sets for balancing | 3.0.WGS | to product |
 | Test masses for calibration | 3.TG | to product |
