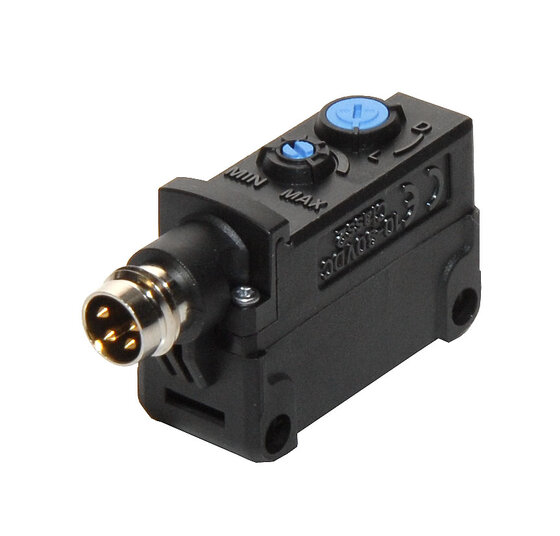

3.DS.PZ-G101CN Speed sensor optical with learning function

Speed sensor optical with learning function

With plug-compatible connection to the evaluation electronics.

Catalog-#	Order-#	Description
3.DS.PZ-G101CN	1032465A	With cable 5m and mounting bracket

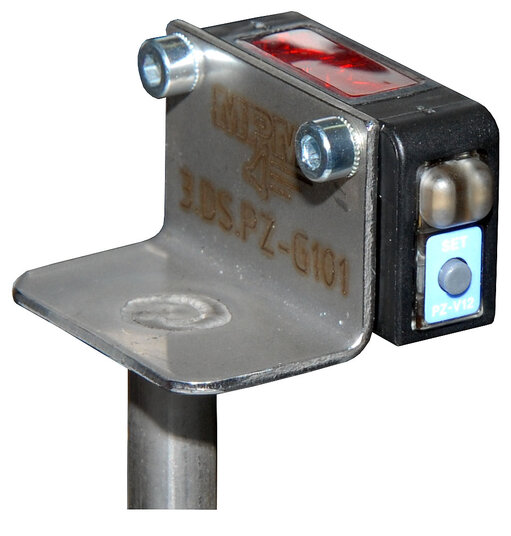

3.DS.MH	1013905A	Mounting bracket for 3.DS.PZ-G101CN

Technical data
Voltage range	10-30V
Power input	< 34 mA
Light spot size	Approx. 5mm diameter (with recognition distance of 100mm)
Working range	up to approx. 60.000 min-1
Working distance	up to 200mm
Exit	NPN
Degree of protection	IP67
Light type	Red LED

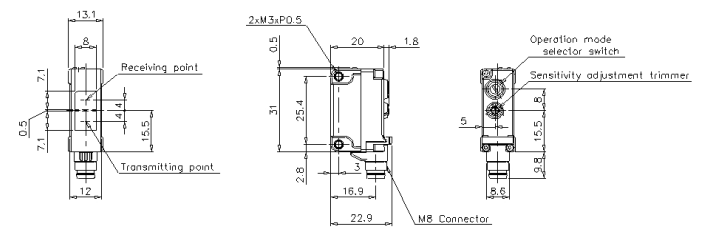

Schematic diagram

All speed sensors can be mounted radially or axially.
Optical sensors must be fitted with reflectors that provide good light/dark contrast.
