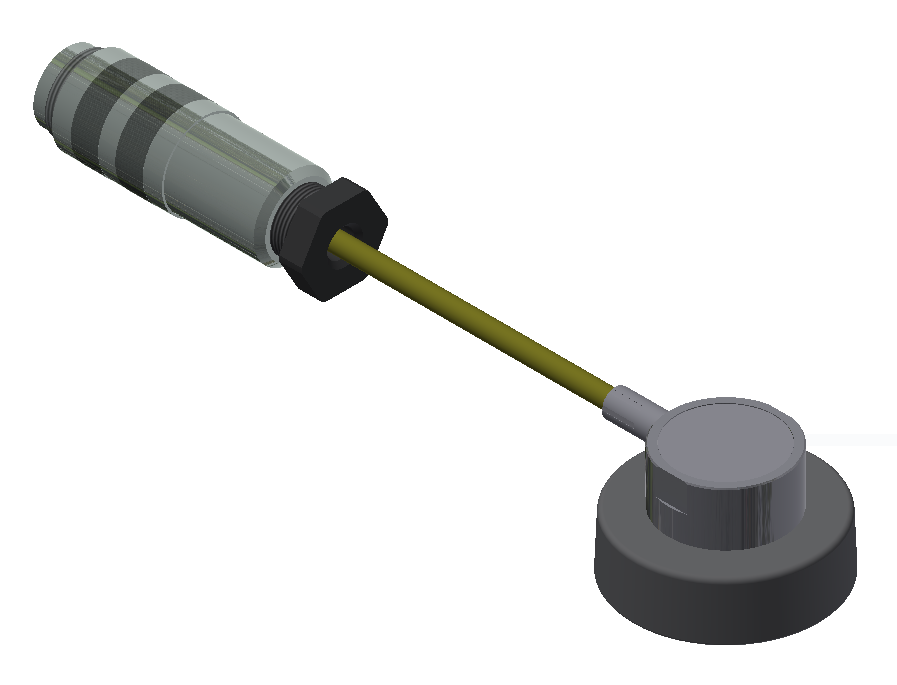

Article 3.PU.M5.4.x.V2.1

3.PU.M5.4.x.V2.1

  • For the absorption of unbalance oscillations which occur with
    spindle rotation occur.
  • Standard vibration sensors 3.PU.M1.. to 3.PU.M5.. and 3.PU.4...
    are accelerometers which can be used at speeds from
    approx. 800min-1 - 18 000min-1 are to be preferred.
  • Vibration sensor with magnet.
  • With plug-compatible connection to the evaluation electronics.

Other cable lengths on request.

Catalog-# / Description

Catalog-# Order-# Description
3.PU.M5.4.1.V2.1 1017516A Cable length 1m, 4-way
3.PU.M5.4.2.V2.1 1038612A Cable length 2m, 4-way
3.PU.M5.4.3.V2.1 1013626A Cable length 3m, 4-way
3.PU.M5.4.5.V2.1 1017525A Cable length 5m, 4-way
3.PU.M5.4.6.V2.1 1017526A Cable length 6m, 4-way

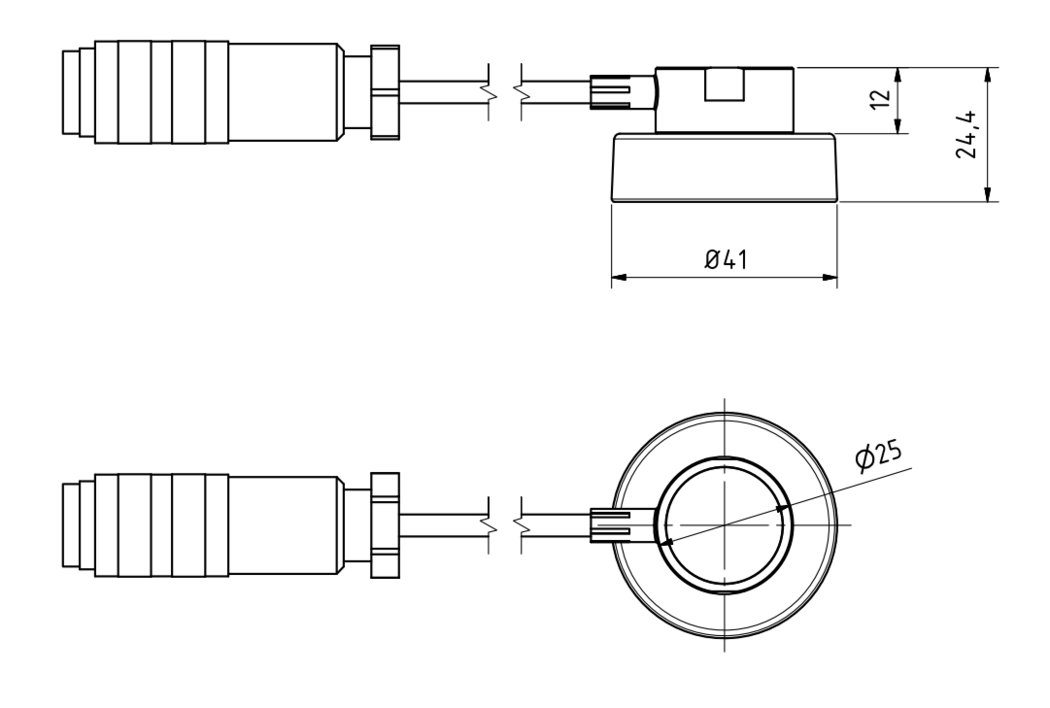

Dimensional drawing

AccessoryDescription Article
Magnet stands 3.PU.xxto product
